Product information
| brand | TELWIN |
|---|
Technical detail
- SINGLE PHASE MAINS VOLTAGE: 230 V
- MAINS FREQUENCY: 50 / 60 Hz
- CURRENT CONTROL RANGE DC: 10 - 160 A
- %USE (20°C USE): 75% @160A
- MAX CURRENT DC EN60974-1: 140 @ 20 % A
- CURRENT 35% DC: 105 A
- DC CURRENT: 70 A
- MAX NO LOAD VOLTAGE: 72 V
- MAX ABSORBED CURRENT: 31 A
- ABSORBED CURRENT AT 60%: 14 A
- MAX ABSORBED POWER: 4,5 kW
- ABSORBED POWER AT 60%: 2 kW
- MOTORGENERATOR MINIMUM POWER: 6 kW
- FUSE: 16 A
- EFFICIENCY: 82 %
- POWER FACTOR: 0,6
- D. USABLE ELECTRODES IN DC: 1,6 - 4 mm
- PROTECTION DEGREE: IP21
- DIMENSIONS: 28 x 12,5 x 18 cm
- WEIGHT: 4,0 kg
Features

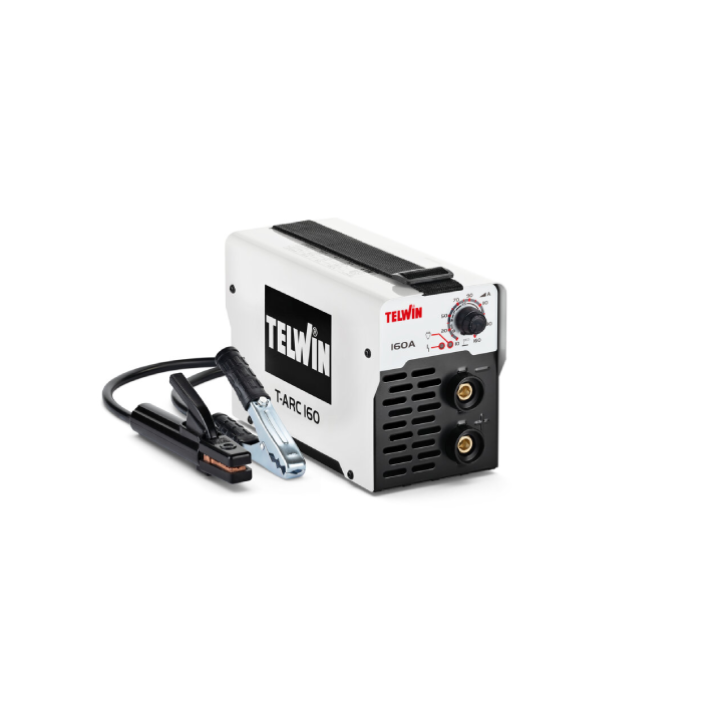

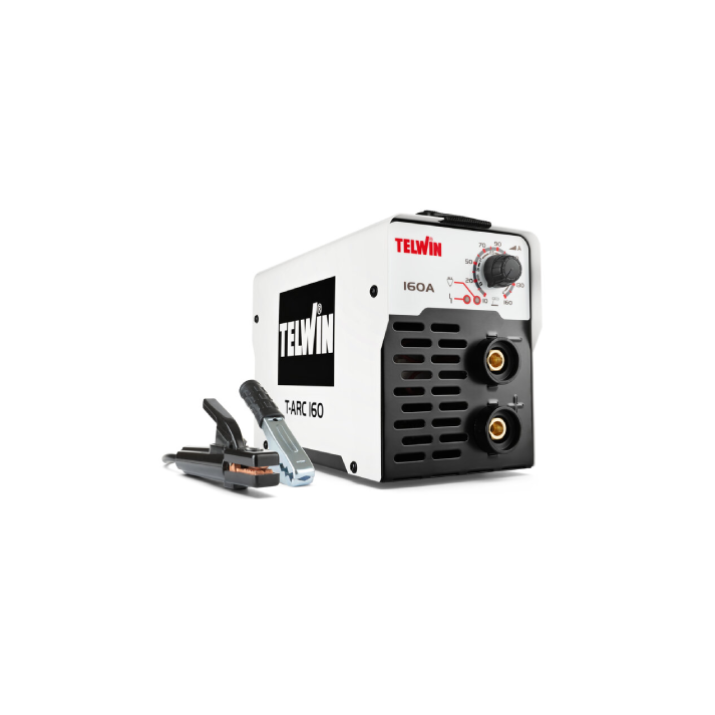

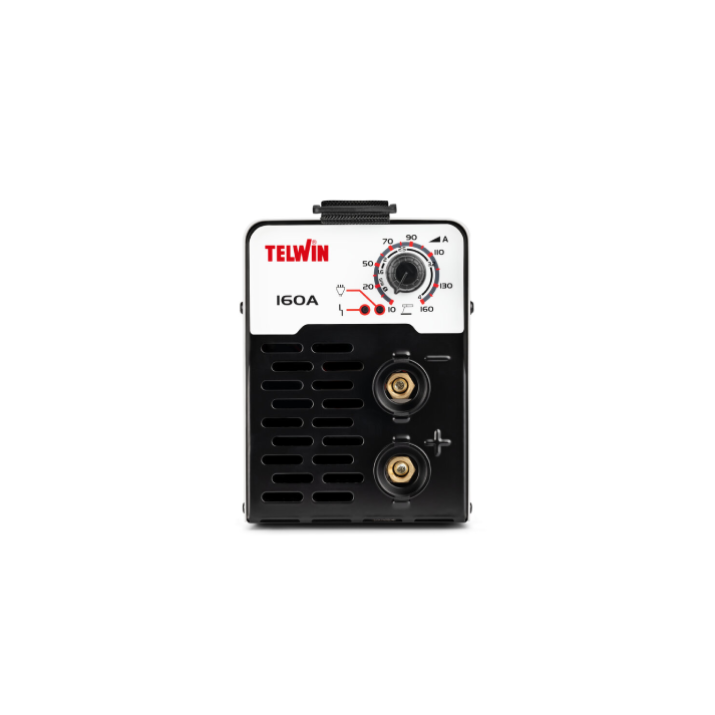

- DC inverter MMA welding machine with 160A output
- Supplied with electrode welding accessories
- Compatible with rutile, basic, stainless steel, and cast iron electrodes up to 4 mm
- Advanced arc control: Arc Force, Hot Start, and Anti-Stick
- Built-in protection: thermostatic, overvoltage, undervoltage, and overcurrent
- Generator compatible (230V ±15%) for flexible use
- Lightweight and compact design for easy transport
- Energy-efficient inverter technology for low power consumption
