Product information
| brand | TELWIN |
|---|
Technical detail
- THREE PHASE MAINS VOLTAGE:400 V
- MAINS FREQUENCY:50 / 60 Hz
- MAX SPOT-WELDING CURRENT: 12000 A
- MAX NO LOAD VOLTAGE: 9 V
- MAX ABSORBED POWER: 41 kW
- RATED POWER X=50%: 8 kW
- FUSE: 16 A
- POWER FACTOR:0,95
- INVERTER FREQUENCY: 5000 Hz
- MAX WELD.THICK. ON 2 SHEETS: 3 + 3 + 3 mm
- MAX ELECTRODES POWER: 400 DAN
- DUTY CYCLE: 2 %
- PROTECTION DEGREE: IP20
- DIMENSIONS: 79 x 45 x 90 cm
- WEIGHT: 81kg
Features

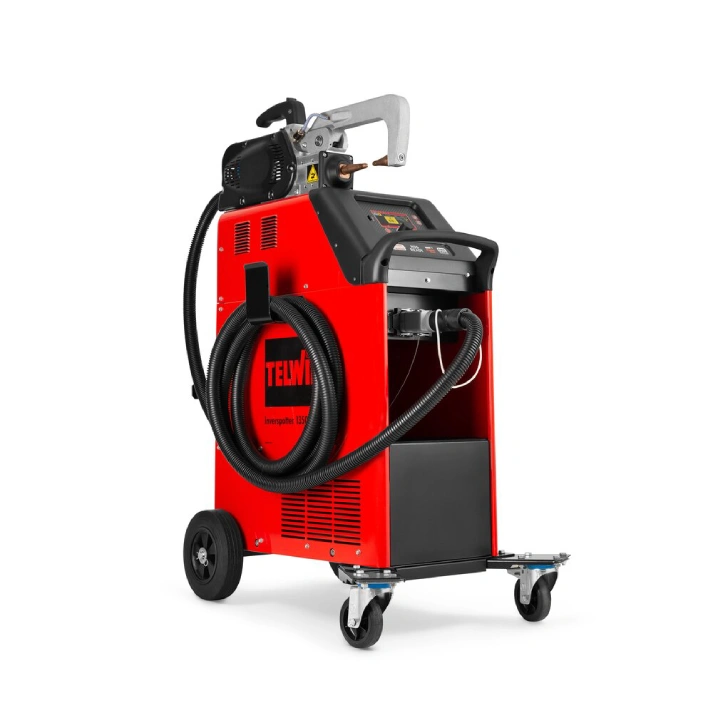

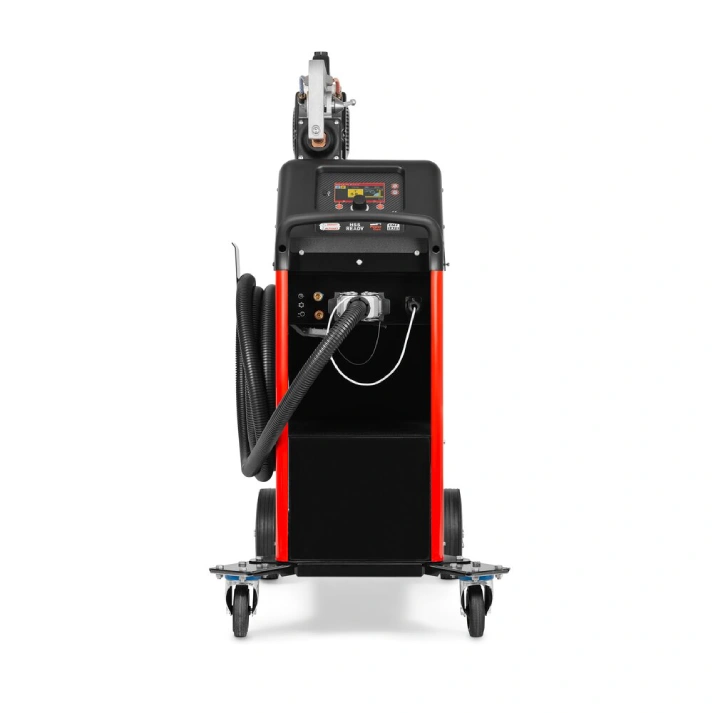

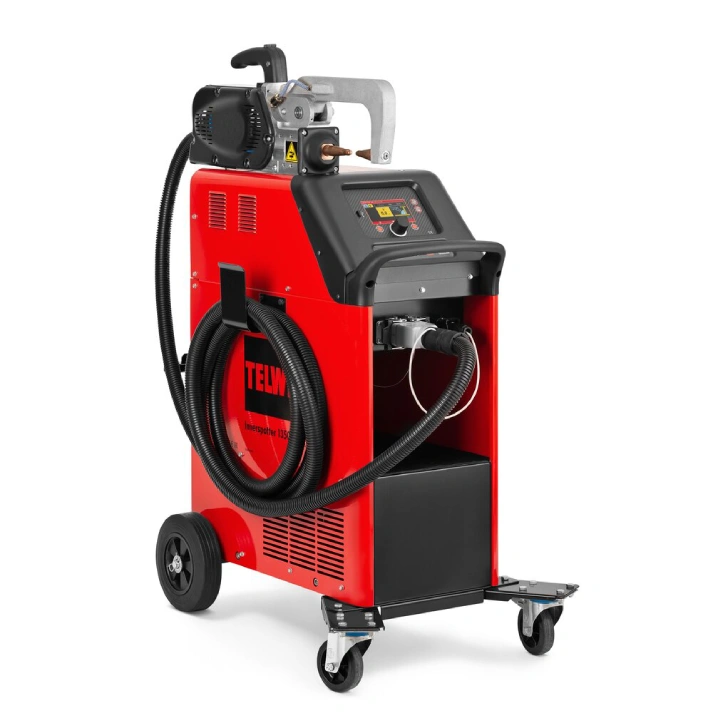

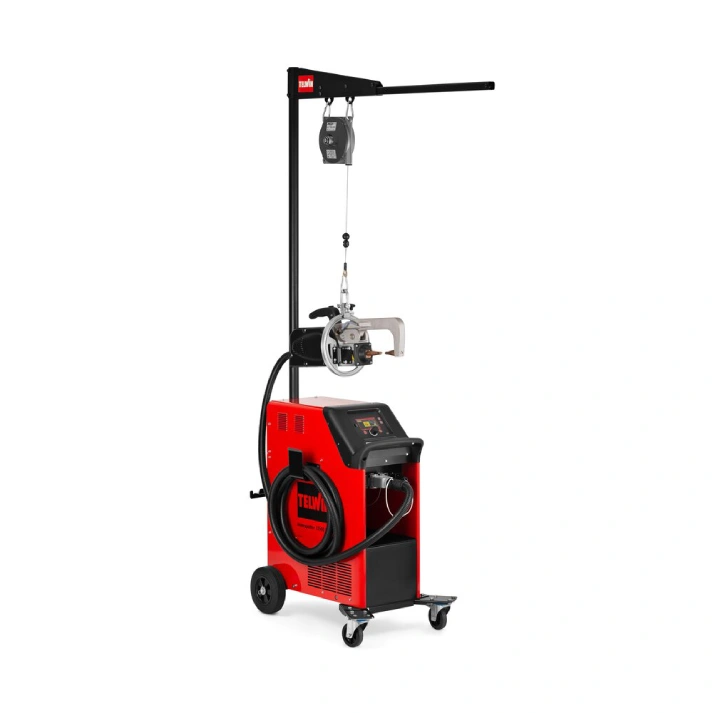

- Inverter spot welding machine with Wave OS technology and TFT colour panel. With liquid cooled pneumatic clamp.
- SMART AUTOSET technology: automatic setting of the spot welding parameters thanks to type and thickness detection of the materials to weld.
- POWER GUN technology: power circuits integrated in the clamp. Long (5m) and light cables for ample action range.
- Saving spot welding data via USB. Spot Welding Data Management for reading and processing spot welding data.
- Optional connectivity kit for data transfer via Wi-Fi.
- Numerous arms and electrodes available.
