Product information
| brand | TELWIN |
|---|
Technical detail
- DOUBLE PHASE MAINS VOLTAGE: 400 V
- MAINS FREQUENCY: 50 / 60 Hz
- MAX SPOT-WELDING CURRENT: 7000 A
- MAX NO LOAD VOLTAGE: 10 V
- MAX ABSORBED POWER: 47 kW
- RATED POWER X=50%: 8 kW
- POWER FACTOR: 0,8
- MAX WELD.THICK. ON 2 SHEETS: 3 + 3 mm
- DUTY CYCLE: 3 %
- PROTECTION DEGREE: IP22
- DIMENSIONS: 79 x 45 x 90 cm
- WEIGHT: 78 kg
Features

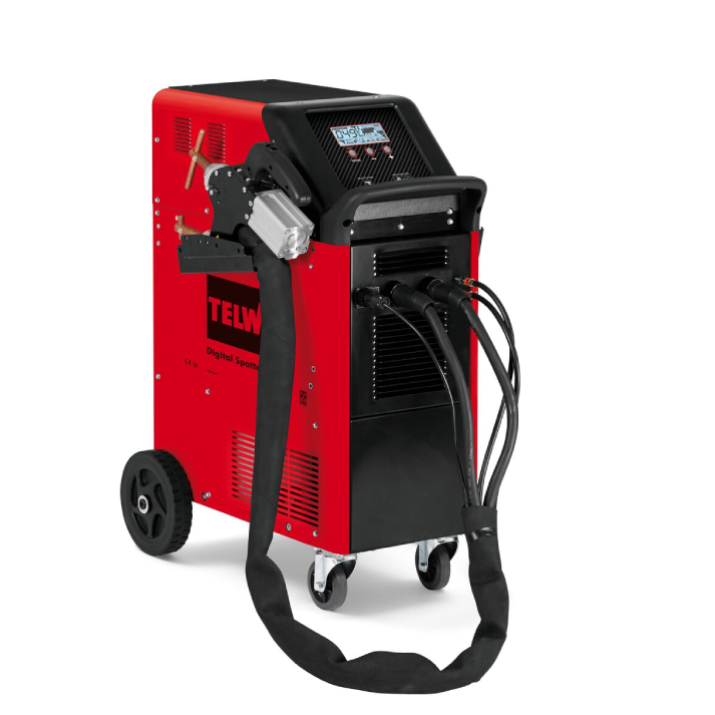

- Electronic spot welding machine with air-cooled pneumatic gun
- Supports continuous and PULSE single spot welding
- Suitable for welding pins, washers, nails, and rivets
- Ideal for heating and reshaping sheet metal
- Digital LCD panel with automatic parameter adjustment
- Automatic gun cooling control for stable operation
- Built-in mains voltage monitoring system
- Welds sheet metal up to 3 + 3 mm thickness
- Compatible with studder kit connection
- Wide range of arms and electrodes available
