Autop Stenhoj 2 Post Mascot 40 H 4.0 t Lift

Posts:

• Asymmetric post installation, vehicles can be positioned far to the rear, for better door-opening angle
• Very stable bent posts
• Can be operated from both sides thanks to controls on both columns
• Direct lowering can be set without lifting from the safety catch
• Second (slower) lowering speed adjustable
• Without base frame, therefore free drive-in situation
• One power pack with low power consumption
• Carriage with optimized sliding block bearing for low friction
• Double door-stop mounted on carriage
• Electrically operated safety ratchet system, no expensive compressed air required
• Push-button control unit with parking button and alarm signal
• Adjustable limit switch for top stop and CE-stop, as well as upper protection switch rail
• Mechanic synchronization via steel cables
• Post is height adjustable during installation

Arms:

• Universal lifting area from small passenger car up to VW T6 long wheelbase with lifting pad type „F“
• Possibility of parallel parking of arms for easier and faster positioning of vehicles
• Arms can be opened more than 180° for better drive-in situation for lifts installed in 90° angle to the drive lane
• Low minimum height

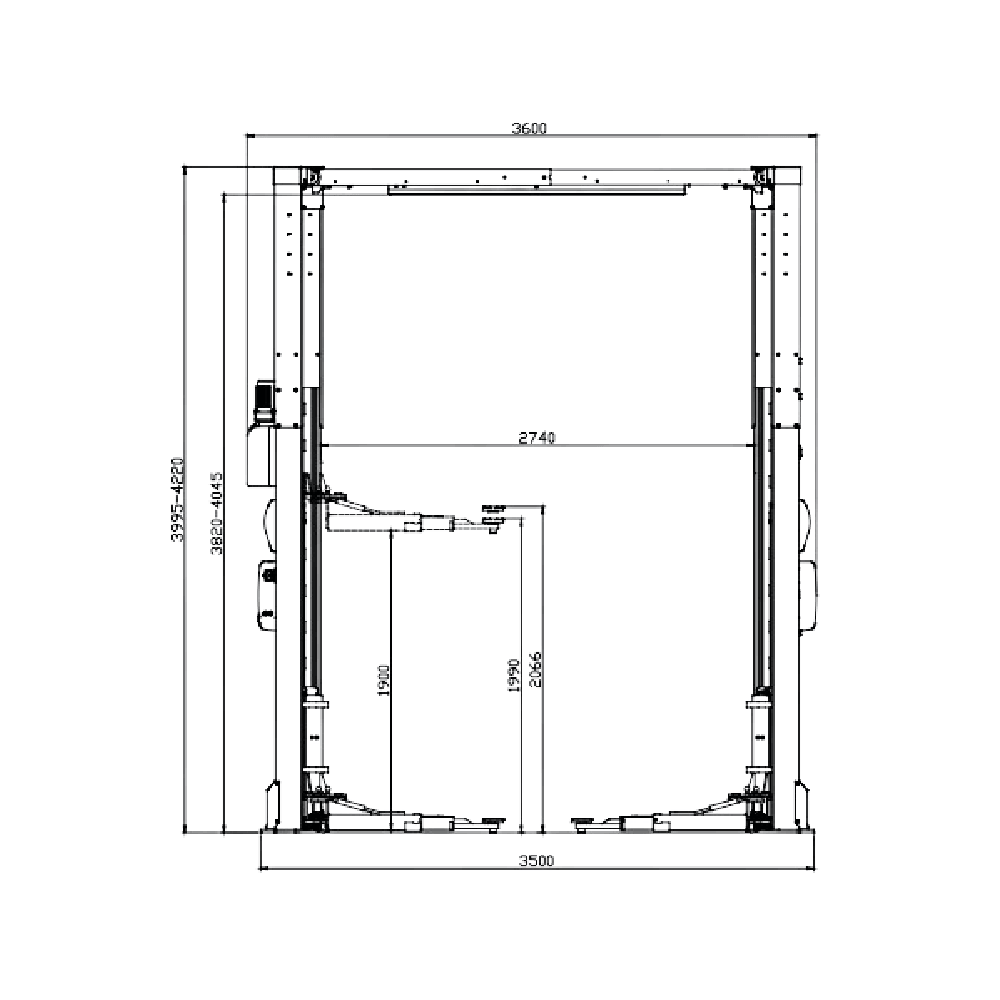

• Lifting capacity, up to: 4,000 kg
• Stroke length: 1,900 mm
• Working height: 1,990-2,066 mm
• Lifting / lowering time: ~ 40 sec.
• Voltage: 3x230/400V-50/60Hz-16A
• Motor: 3.0 kW
• Lifting pad included in the delivery: F: 90 - 166 mm
• Total height post: 3995 + 225 mm
• Drive-through width: 2,405 mm
• Min. height: 90 mm
• Width between posts: 2,740 mm
• Total width - outer edges base plates: 3,500 mm
• Arm length front, min. - max: F: 600-1,245 mm
• Arm length rear, min. - max: F: 750-1,445 mm
