Autop Stenhoj 2-post Maestro 3.2 t Lift
Built for daily workshop use, the Autop Stenhoj 2-post Maestro 3.2 t Lift provides stable lifting performance, durable construction and reliable operation for professional technicians.
We're Here to Help
Contact our team for product recommendations and quotations. +92 333-0138509
Category: Lifts Equipments | 2 Post Lift |
Brand: AUTOP STENHOJ
Fast and secure delivery of premium automotive workshop equipment to every major city across Pakistan.
Expert installation and equipment setup by trained technicians for smooth and reliable workshop operations.
Expert calibration, equipment repair, preventive maintenance, and professional technical guidance to keep your workshop operating efficiently.
Autop Stenhoj 2-post Maestro 3.2 t Lift with Clear Floor
- Asymmetric post installation
- Very stable bent posts
- Made of high quality 8 mm steel
- Without base frame
- Two motors
- Cold-rolled spindle
- Nylon nut sets
- Carriage with a combination of bearing by sliding blocs and rollers
- Pushbutton control unit with alarm signal
- Programmable top stop
- Electronic synchronization
- Double telescopic front and single telescopic rear arms, as standard
- Possibility of parallel parking of arms
- Internal arm locking system
- Low minimum height

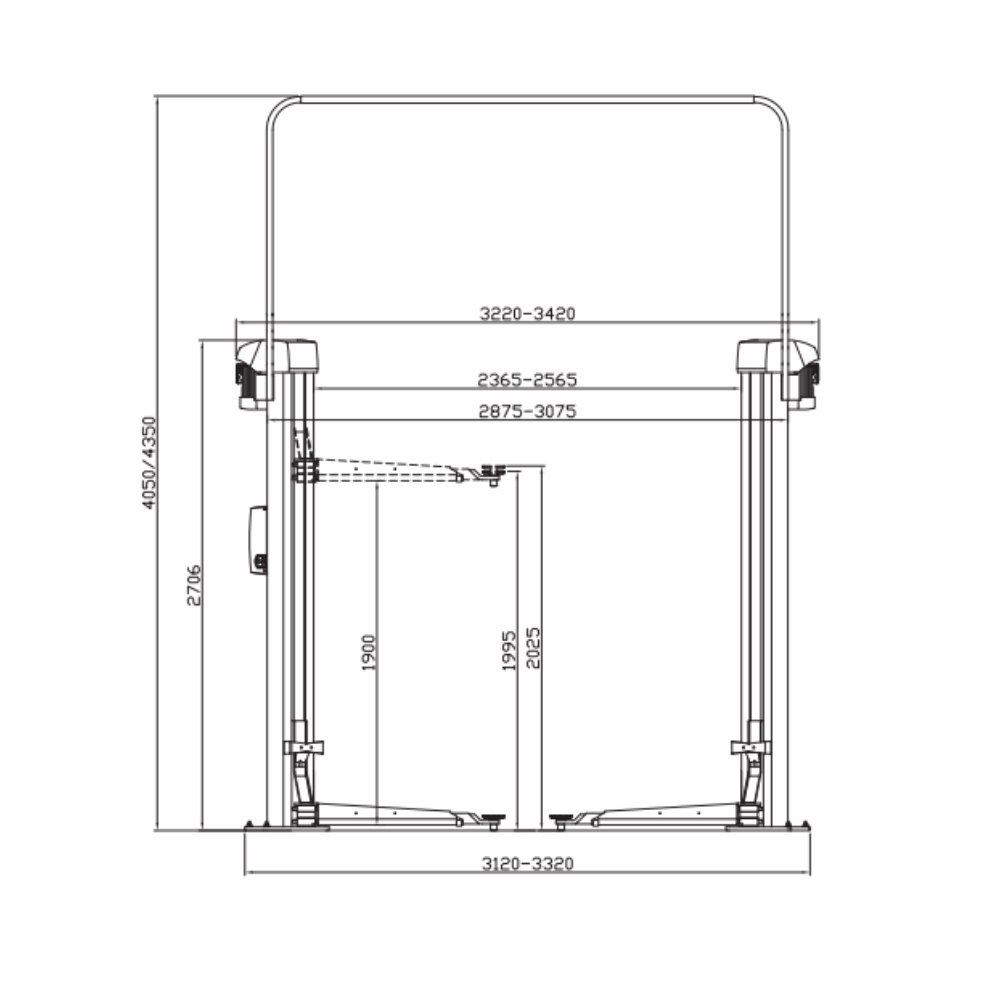

- Lifting capacity, up to: 3,200 kg
- Stroke length: 1,900 mm
- Working height: 1,995 - 2,025 mm
- Lifting / lowering time: ~ 40 sec.
- Voltage: 3x230/400 V-50Hz - 25/16 A
- Motor: 2 x 2.8 kW
- Total height post: 2706 mm
- Total height incl. portal: 4,050 / 4,350 mm
- Drive-through width: 2,110-2,310 mm
- Min. height: 95 mm
- Width between posts: 2,365-2,565 mm
- Total width - outer edges base plates: 3,120-3,320 mm
- Total width - outer edges posts: 2875-3075 mm
- Arm length front, min. - max: F DT: 540 - 850 mm
- Arm length rear, min. - max: F ST: 900-1,425 mm
