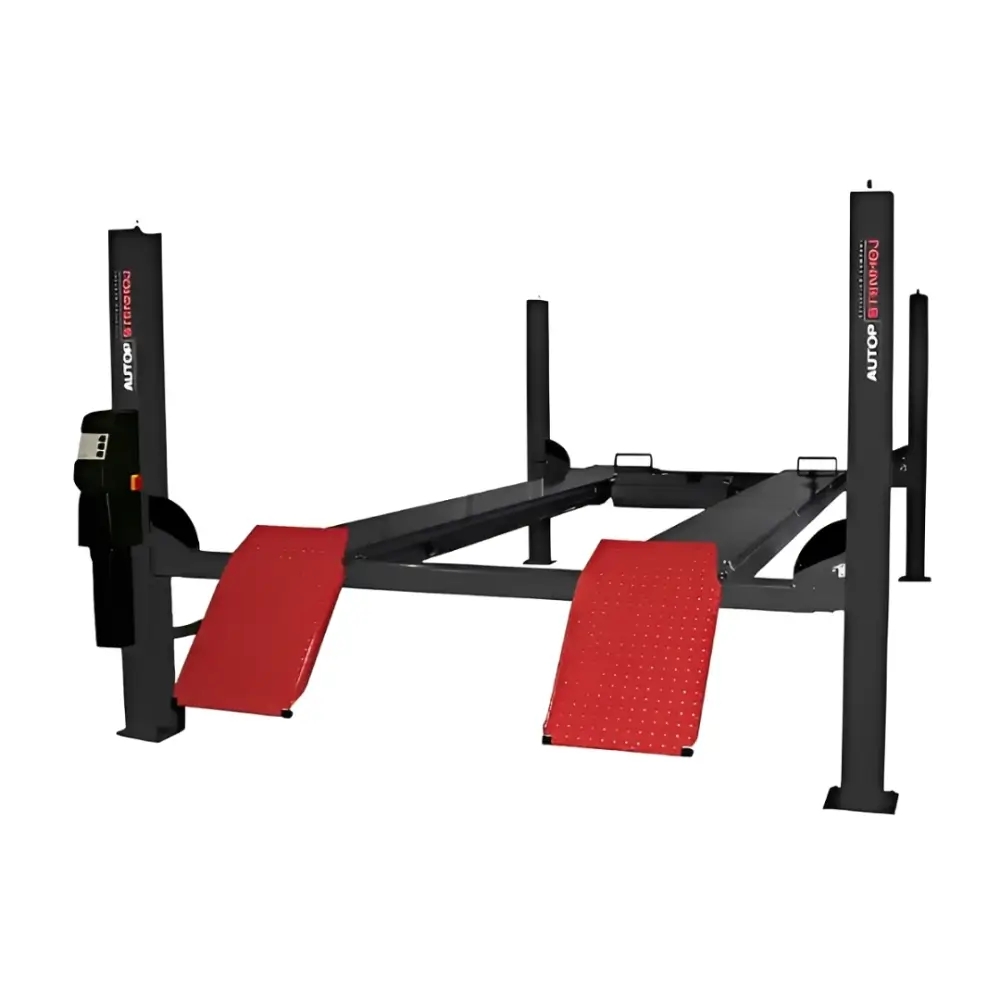

Autop Stenhoj Major 4026 4.0t 4 Post Lift
Autop Stenhoj Major 4026 4.0T 4 Post Lift is a professional lifting solution designed for vehicle maintenance, inspections and general workshop applications.
We're Here to Help
Contact our team for product recommendations and quotations. +92 333-0138509
Category: Lifts Equipments | 4 Post Lift |
Brand: AUTOP STENHOJ
Fast and secure delivery of premium automotive workshop equipment to every major city across Pakistan.
Expert installation and equipment setup by trained technicians for smooth and reliable workshop operations.
Expert calibration, equipment repair, preventive maintenance, and professional technical guidance to keep your workshop operating efficiently.
Autop Stenhoj 4 P ost Major 4026 with 4.0 t capacity Lift
- Integrated eccentric brake system
- Emergency stop valve
- Obstruction system
- Pneumatic parking system in height adjustable ratchets
- Pump unit with immersed motor and control unit on rear left post
- Pushbutton control unit with alarm signal
- Hydraulic cylinder under left platform
- Lifting and lowering by means of cables
- Emergency lowering valve
- One movable platform as standard
- Lifting capacity, up to: 4,000 kg
- Stroke length: 1,670 mm
- Working height: 1,810 mm
- Lifting / lowering time: 24 / 26 sec.
- Pump unit: 3.0 kW
- Voltage: 3x230/400V-50 Hz - 25/16 A

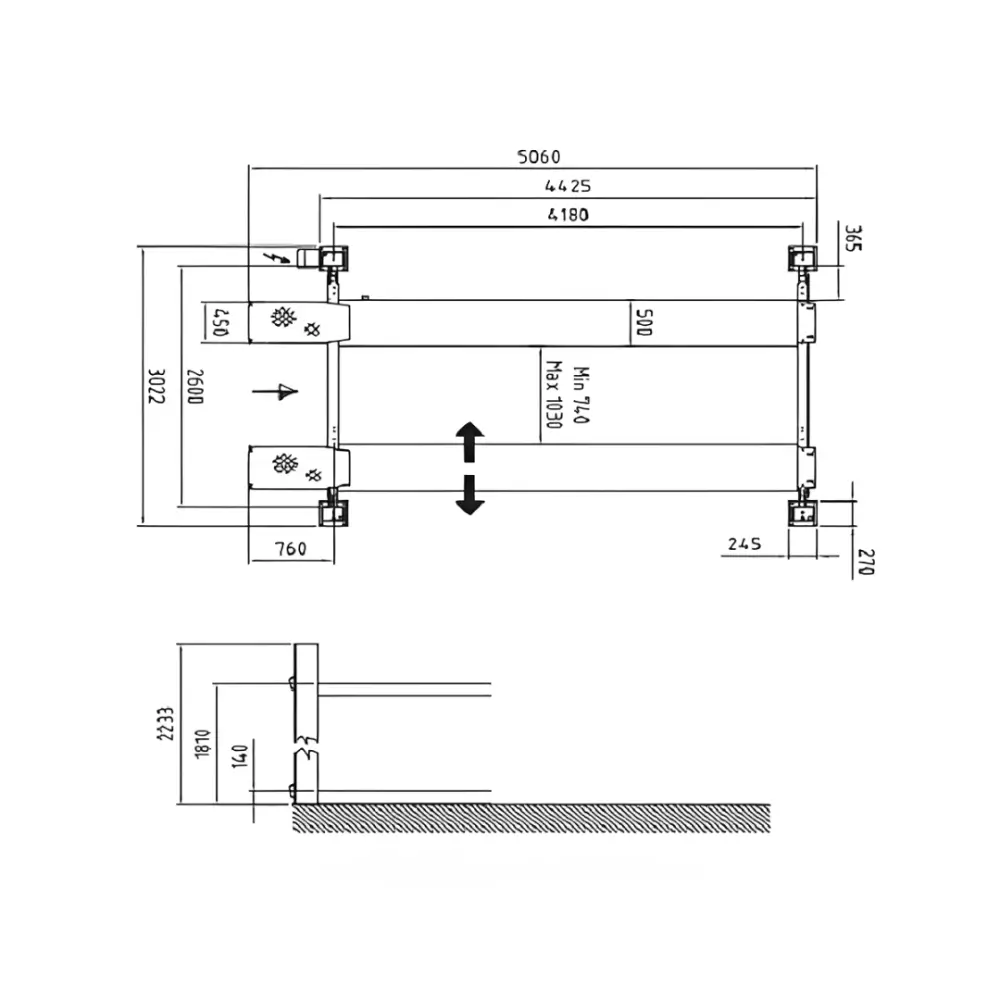

- Total length: 5,060/ 5,560 mm
- Platform width - Measurements depend on platform length: 500 mm
- Usable length of platform: 4,180/ 4,680 mm
- Height: 2,233 mm
- Wheel base, min. - max: variable
- Distance between platforms: 740-1,030 mm
- Drive-on height: 140/160 mm
- Width between posts: 2,600 mm
- Total width - outer edges base plates: 3,022 mm
