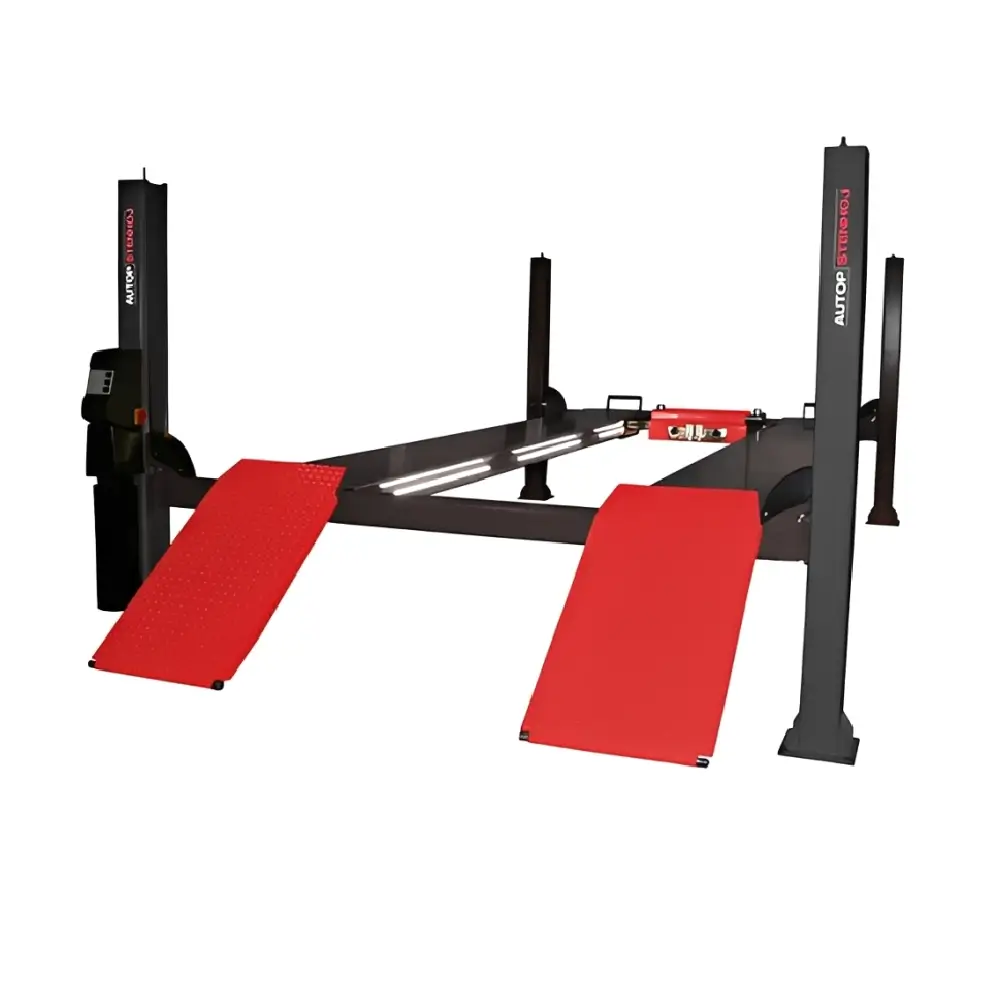

Autop Stenhoj Major 7230 7.2t 4 Post Lift
Autop Stenhoj Major 7230 7.2T 4 Post Lift is a professional heavy-duty lifting solution designed for commercial vehicle maintenance, inspections and repair applications.
We're Here to Help
Contact our team for product recommendations and quotations. +92 333-0138509
Category: Lifts Equipments | 4 Post Lift |
Brand: AUTOP STENHOJ
Fast and secure delivery of premium automotive workshop equipment to every major city across Pakistan.
Expert installation and equipment setup by trained technicians for smooth and reliable workshop operations.
Expert calibration, equipment repair, preventive maintenance, and professional technical guidance to keep your workshop operating efficiently.
Autop Stenhoj 4 Post Major 7230 Lift 7.2t Capacity
- Integrated eccentric brake system
- Emergency stop valve
- Obstruction system
- Pneumatic parking system in height adjustable ratchets
- Pump unit with immersed motor and control unit on rear left post
- Pushbutton control unit with alarm signal
- Hydraulic cylinder under left platform
- Lifting and lowering by means of cables
- Emergency lowering valve
- One movable platform as standard

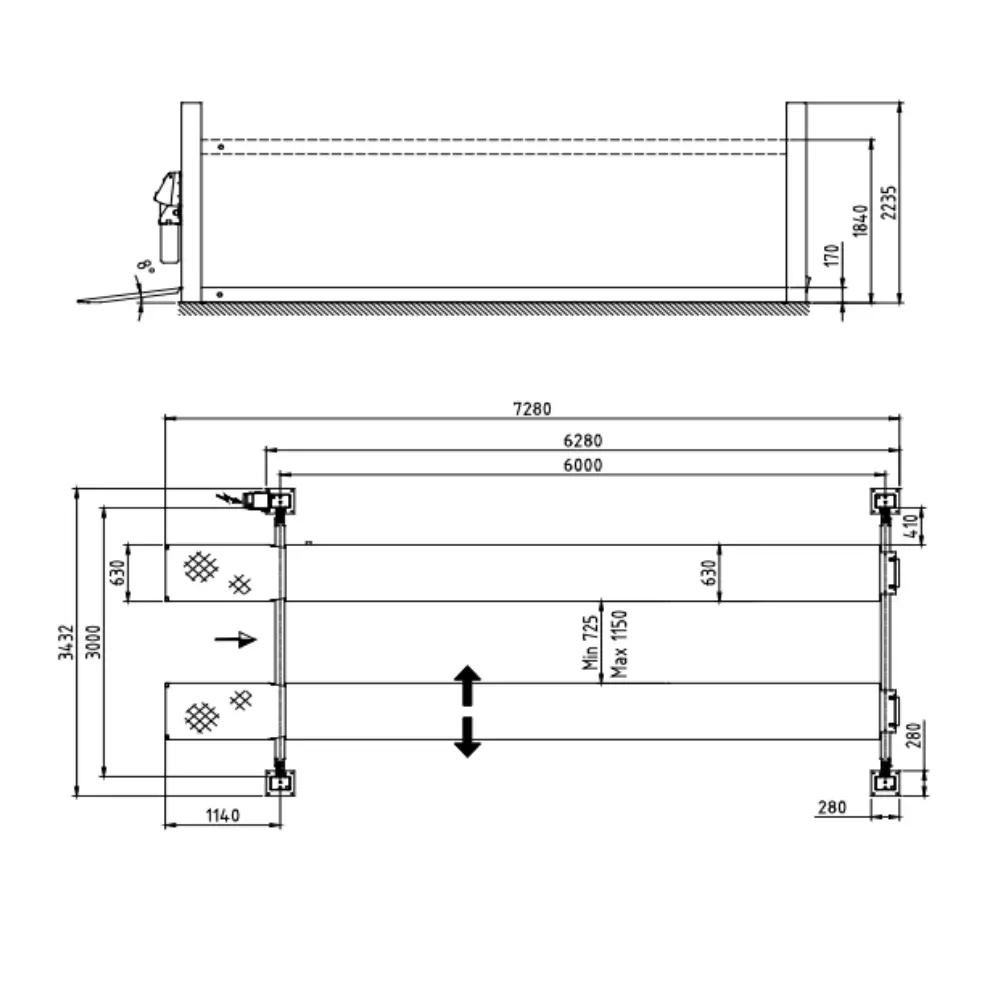

- Lifting capacity, up to: 7,200 kg
- Stroke length: 1,670 mm
- Working height: 1,840 mm
- Lifting / lowering time: 40/58 sec.
- Pump unit: 3.0 kW
- Voltage: 3x230/400V-50 Hz - 25/16 A
- Total length: 7,280 mm
- Platform width - Measurements depend on platform length: 630 mm
- Usable length of platform: 6,000 mm
- Height: 2,235 mm
- Wheel base, min. - max.: variable
- Distance between platforms: 725 - 1,150 mm
- Drive-on height: 170 mm
- Width between posts: 3,000 mm
- Total width - outer edges base plates: 3,432 mm
