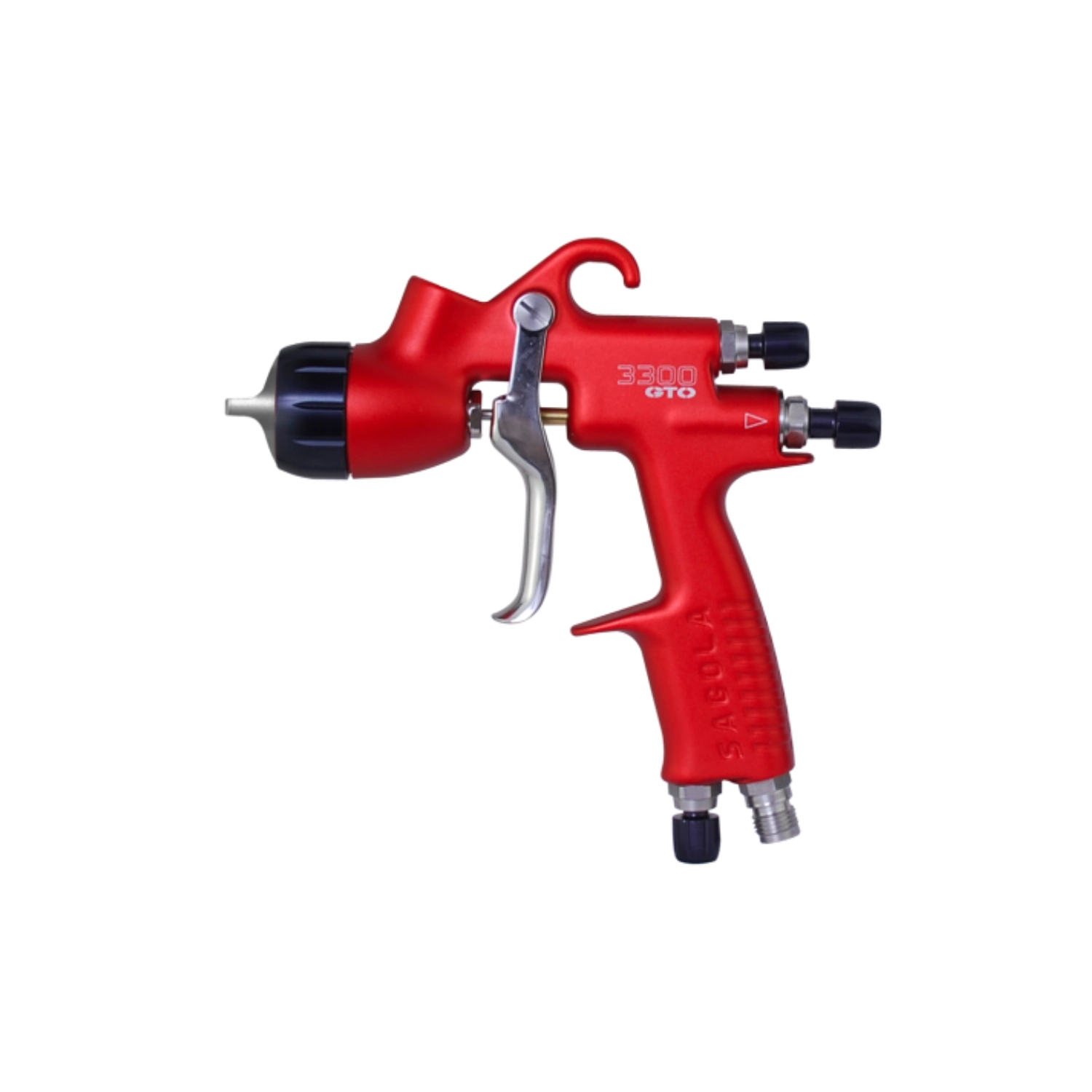

SAGOLA New 3300 GTO Spray Gun

PREMIUM PERFORMANCE

Built to the highest SAGOLA standards, delivering professional results with outstanding value and a 3-year warranty.

VERSATILE APPLICATION

Designed for a wide range of painting tasks, making it suitable for both industrial and automotive refinishing.

ERGONOMIC DESIGN

Lightweight, balanced, and comfortable for extended use, reducing operator fatigue while improving control.

DURABLE CONSTRUCTION

Forged aluminum body with stainless steel components and anodized anti-corrosion protection for long-lasting reliability.

EASY MAINTENANCE

Smooth surfaces and high-quality materials make cleaning and maintenance quick and effortless.

• Weight without cup: 474.8 g.
• Dimensions without cup: 18.2 x 1.9 x 17.8 cm.
• Air inlet couplings: BSP 1/4” M
• Cup capacity: 650 ml
• Cup: Removable anti-drip system
• Maximum design pressure: 8 bar
• Air inlet pressure max: 2 bar
• Maximum recommended application distance GTO EPA: 18 - 20 cm.
• Maximum recommended application distance GTO HVLP: 12 - 15 cm.
• Average paint output flow (nozzle 1.4 mm. 20”) GTO EPA: 179 g/min
• Average paint output flow (nozzle 1.4 mm. 20”) GTO HVLP: 145 g/min
• Average paint output flow (nozzle 1.4 mm. 20”) GTO EVO: 179 g/min
• Air consumption (2 bar inlet) GTO EPA: 250 L/min
• Air consumption (2 bar inlet) GTO HVLP: 360 L/min
• Air consumption (2 bar inlet) GTO EVO: 255 L/min
• Fan size GTO EPA [1.8]: 250 mm.
• Fan size GTO HVLP [1.8]: 250 mm.
• Fan size GTO EVO [1.4]: 280 mm.
• Average sound pressure level: 80 dB
