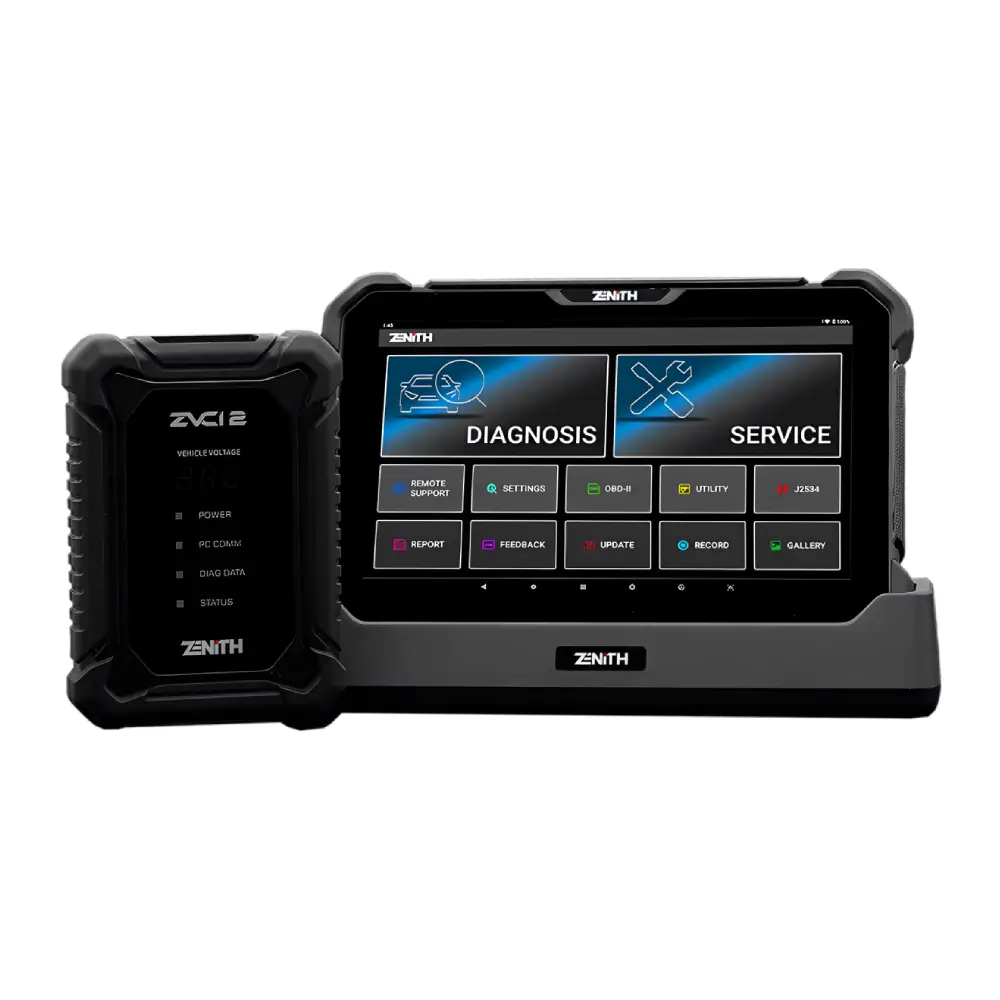

ZENITH Z7 PRO Scanner
The ZENITH Z7 PRO Scanner is a professional multi-brand diagnostic solution designed for automotive workshops, providing advanced fault detection, system analysis and efficient vehicle troubleshooting.
We're Here to Help
Contact our team for product recommendations and quotations. +92 333-0138509
Category: Diagnostic Tool’s | Diagnostic Scanners |
Brand: Zenith EZDS
Fast and secure delivery of premium automotive workshop equipment to every major city across Pakistan.
Expert installation and equipment setup by trained technicians for smooth and reliable workshop operations.
Expert calibration, equipment repair, preventive maintenance, and professional technical guidance to keep your workshop operating efficiently.

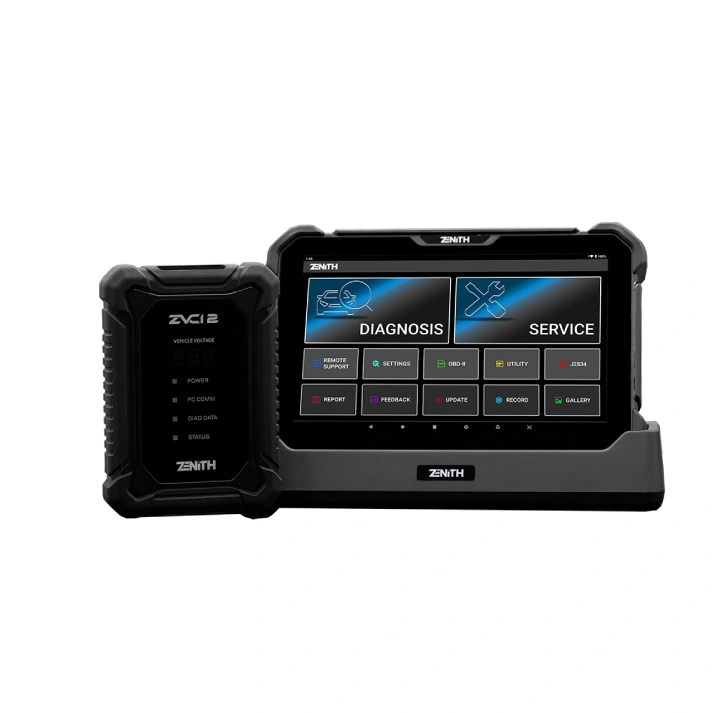

Zenithdiag ZENITH Z7 PRO Scanner
- Quick access to mostly used se vice functions without navigat-ing menu system
- Bi-directional communications with 24 V commercial trucks and buses
- Ready for most protocols on the market including CAN FD and DoIP.
- Ultra fast Topology scan for all-system-scan
- Remote diagnostic function support available via J2534 technology
- Wireless diagnostic interface via latest Bluetooth technology
- Latest ADAS calibration software included in one package
- 'Pass-Thru' device for programming the ECUs for multi-ple carline
- Fast and easy diag-nostic report on pre and post scan results
- CPU: Octa Core Processor 2.2 GHz
- Operating System: Android 11
- System Memory: 4G / Internal 64G **
- External Memory: Micro SD Card Slot Supported (up to 256GB)
- LCD: 10.1 inch FHD (1920 x 1200)
- Input Devices: Capacitive Touch Screen, 3 Hard Keys (Power, Volume +, Volume -)
- Camera: 8 megapixel auto-focus with LED flash
- Sound: Loud Speaker 1 microphone
- Rechargable Battery: Li-ion 3.85V, 5800mAh
- Operating Voltage: Main Unit(DC5V)
- Sensors: Ambient Light, Gyroscope, Accelerometer
- Dimension: About 275 x 187 x 36mm(Terminal) About 170 x 124 x 32mm(VCI)
- External Port: 1 x USB Type C (Special Locking Type Port)
- Network: RJ45 Ethernet, Wi-Fi 802.11 a/b/g/n, Bluetooth 5.0, NFC
