MAXIMA-L2E Chassis Alignment & Repair System
The MAXIMA-L2E Chassis Alignment & Repair System is engineered for professional collision repair, providing the strength and precision required to restore damaged vehicle frames to their original specifications.
We're Here to Help
Contact our team for product recommendations and quotations. +92 333-0138509
Category: Auto Body Repair | Chassis Alignment & Repair System |
Brand: MAXIMA Auto
Fast and secure delivery of premium automotive workshop equipment to every major city across Pakistan.
Expert installation and equipment setup by trained technicians for smooth and reliable workshop operations.
Expert calibration, equipment repair, preventive maintenance, and professional technical guidance to keep your workshop operating efficiently.

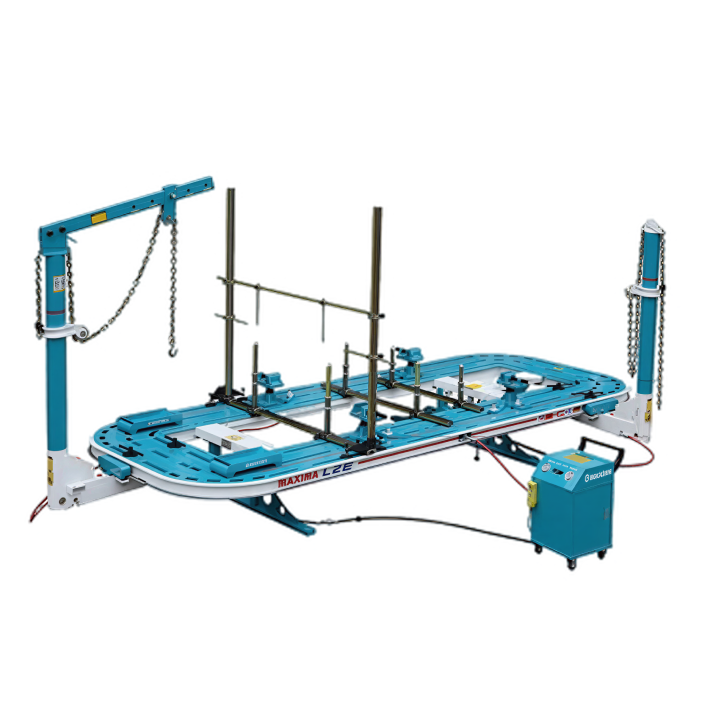

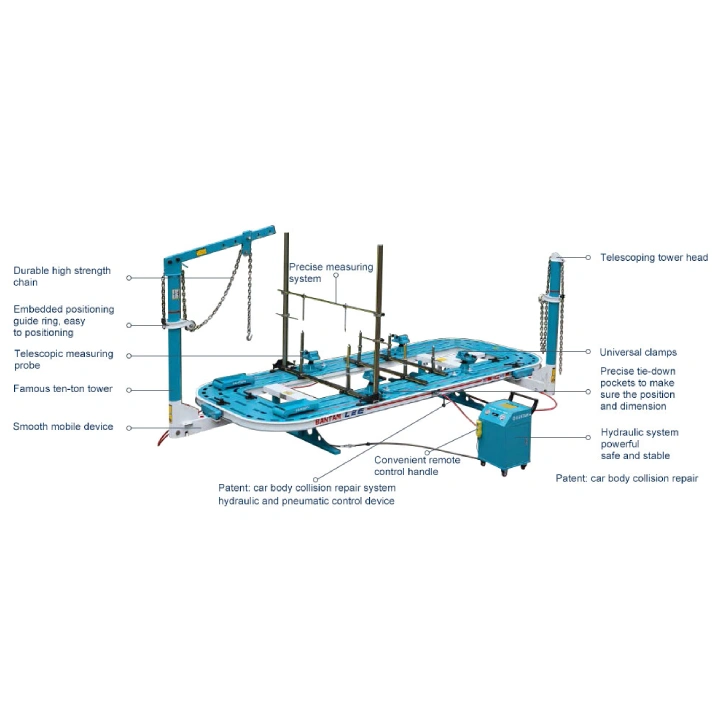

MAXIMA-L2E Chassis Alignment Bench & Repair System
- Single electro-hydraulic pump controls lifting, RSJ & pulling towers.
- Heavy-duty welded steel platform ensures strength and durability.
- Hydraulic tilting platform for easy vehicle loading/unloading.
- 360° movable pulling towers with smooth gliding system.
- High-performance hydraulic system – strong pulling power & long lifespan.

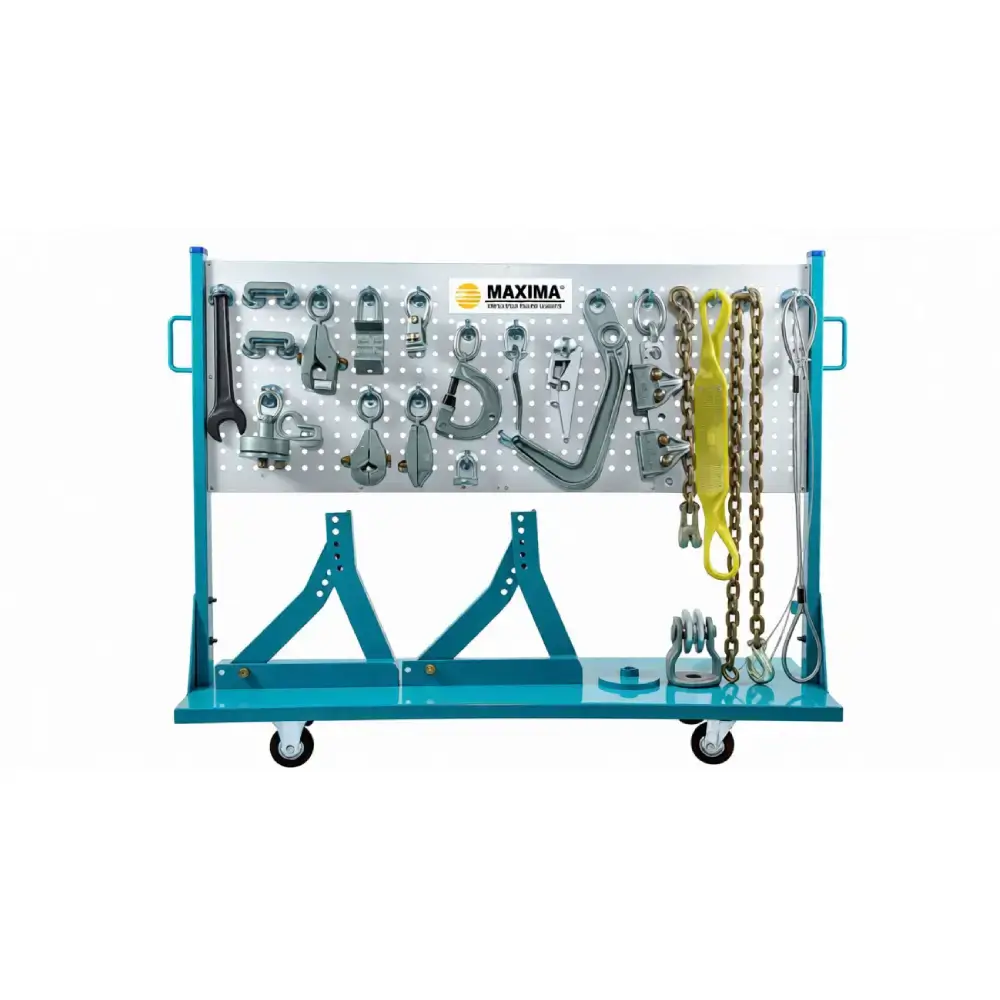

- Universal clamp system secures all types of chassis firmly.
- Compatible with all measuring systems for accurate repair work.
- TECHNICAL DATA
- Platform length 5200mm
- Platform width 2110mm
- Platform height 500mm .
- Max pulling power of the tower 10 T
- Working range 360°
- Max hydraulic pressure 0.8MPa
- Max. lifting capacity 3500kg
- Weight 2200kg
- Voltage 380v,3 phase/ 220v, 1 phase/220v, 3 phase
