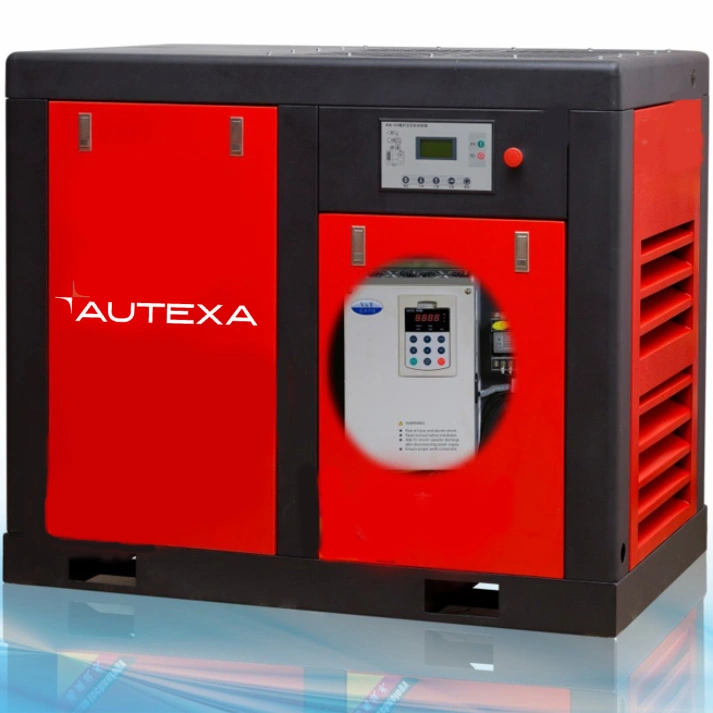

Autexa AX-AC30A Screw Air Compressor
Autexa AX-AC30A Screw Air Compressor is a professional compressed air solution designed to provide continuous, reliable performance for automotive workshops and industrial environments.
We're Here to Help
Contact our team for product recommendations and quotations. +92 333-0138509
Category: Air Compressors | Screw Compressors |
Brand: Autexa
Fast and secure delivery of premium automotive workshop equipment to every major city across Pakistan.
Expert installation and equipment setup by trained technicians for smooth and reliable workshop operations.
Expert calibration, equipment repair, preventive maintenance, and professional technical guidance to keep your workshop operating efficiently.
Autexa AX-AC30A Screw Air Compressor
- High Efficiency & Stable Performance – Personalized and optimized design.
- Stepless Speed Regulation – Stable and consistent air pressure output.
- Soft Start Technology – Shock-free startup to protect electrical components.
- Wide Voltage Range – Strong adaptability to different power conditions.
- Low Noise & Low Wear – Extended machine service life.
- Energy Saving Design – Up to 30% energy savings.
- Suitable Models – Compatible with 10HP to 350HP units.
- Motor Power: 22 kW (30 HP)
- Air Delivery: 3.6 m³/min
- Working Pressure: 0.8 MPa
- Drive: Direct Drive, PM VFD
- Cooling: Air Cooled
- Noise Level: 68 ±2 dB(A)
- Lubricant: 14 L
- Weight: 318 kg
- Dimensions: 1250 × 850 × 1210 mm
- Air Outlet: 1”
- Voltage: 380V / 50Hz
